How to read a WebPageTest waterfall chart
Hello, I'm here to talk to you about a tool you may or may not have heard of.
And that is WebPageTest.
This talk is mainly about a very specific part of WebPageTest and that is the waterfall chart.
Now the chart may look intimidating at first, but once you understand it, the visualization really unlocks a heap of information for you at a glance, allowing you to quickly debug issues, certify that issues have been fixed, and understand exactly how a browser loads a page.
There are a couple of bits of assumed knowledge for this talk.
First is a WebPageTest URL.
For those who are unsure, it's this.
This will bring you to the public instance of WebPageTest, where you can test your site's performance for free.
Second is that you have run a test.
Don't worry though.
If you haven't run one, I just so happen to have written a whole blog post about it right here.
It's a shameless plug, I know.
So first let's cover a little background info.
What is WebPageTest?
WebPageTest is a synthetic performance testing tool created by Pat Meenan back in 2008 while he was working at AOL.
It was originally an IE plugin called Pagetest before evolving into the online version we see today.
WebPageTest was recently acquired by Catchpoint in 2020.
Pat, along with the rest of the Catchpoint team will help maintain and grow it in the future.
But for the past 12 years, the public instance of WebPageTest, including all the test devices have been sitting in Pat's basement.
This image is from 2014, I assume it may have changed a little in seven years.
WebPageTest allows you to run web performance tests from any of these locations in the world.
You can configure the test agents to test your site using a whole host of browsers with many different connection speeds.
The data you get back from the tool is invaluable for spotting and fixing web performance issues.
Enough of the history of WebPageTest - let's dive right into the waterfall chart UI.
Here's a basic web page test waterfall chart.
The test is from my own blog.
This chart is essentially a visualization of the raw data you get back from various browser APIs.
I've split the image into seven sections - I'll go over each one very briefly.
Number one: the Key.
Here we see a series of colors - first, a set of browser and connection events like wait, DNS, connect, and SSL.
Next, a set of color-coded files by their mime-type.
You'll see two color tones for each.
I'll come to what this means a little bit later.
Each of these colors corresponds to an event or request you see in the request timeline.
Number two: the Request List.
Here, we see a list of assets found on this particular page.
They are in the order that the requests go out over the network.
The HTML in this instance is at request number one right at the top, but this isn't always the case - redirects and OCSP lookups can sometimes come before the page HTML.
Number three: the Request Timeline.
Here we see the waterfall.
It's much like you would see in the network tab in your developer tools.
The color coding we saw earlier in the key applies here.
Each asset is on its own separate row.
The time in seconds is seen along the top and the bottom of the image.
This could be in milliseconds for some tests.
There's a whole lot more going on in this image that I will cover soon.
Number four: CPU Utilization.
Here we see a line graph of how much load the CPU of the test device was under at any point in time during the page load.
It ranges from zero to a hundred percent utilization.
It's always good to keep an eye on this chart, especially on low spec devices.
This is to see if the CPU is becoming a bottleneck for performance.
Number five: Bandwidth In.
This graph gives you an idea of the data flowing into the browser at any point in time during the page load.
The absolute scale isn't particularly accurate, but it roughly relates to the max bandwidth allowed on the connection.
In the example here, max bandwidth is 1,600 kilobits per second, and this equates to a 3G connection.
You mainly want to use this graph to check that the browser is doing useful work rather than time being wasted during the page load.
There is a much more accurate option available called a 'tcpdump'.
This is located on the Advanced Settings tab when you configure the test.
You should enable this if you want more accurate results that you can examine using tools like Wireshark.
Number six: the Browser Main Thread.
So this image isn't taken from my blog - since it's only a very small static site, it's nowhere near as busy as this.
This is actually taken from one of the popular news websites here in the UK.
Each of the colors corresponds to a particular task that the browser's main thread is doing at any point in time.
The y-axis corresponds to the percentage of time that the task is taking up.
This graph is great to spot where the CPU is becoming a bottleneck and what task is causing it.
Also note that these colors may look very familiar if you've used the 'Performance' tab in the Chrome dev tools as this is where the colors are copied from.
And last, number seven: Page is Interactive, or Long Tasks.
So this bar has now been renamed to long tasks.
You may see it in older waterfall charts as 'Page is Interactive'.
The measurement hasn't changed - just the name.
This thin bar gives you an indication of when the browser main thread is blocked.
If the main thread is blocked for 50 milliseconds or more, the color will be red.
If not, it will be green.
Note that a blocked thread may impact on inputs like button presses, but browser scrolling is likely to be unaffected, as this is handled off the main thread.
So now if we pull all this together again, this UI hopefully makes a little more sense.
You can think of this graph as a story of how the browser loads a page.
So chapter one: it's first connecting to the server.
Chapter two it's downloading and parsing HTML.
Chapter three: requesting additional assets.
Chapter four: pixels rendered to the screen.
And the final chapter where the story ends is the finalized page, with all the assets loaded.

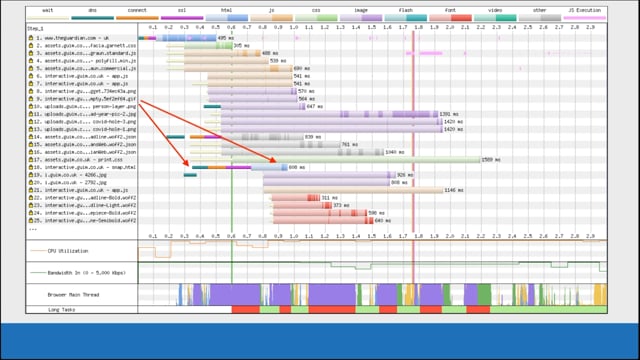

Let's pull out some specifics for the waterfall you can see here.
So first let's focus on request number one.
We see a connection to the server.
The HTML has been downloaded and parsed.
Next, on request 14 we see an additional TCP connection established under HTTP/2.
This must be due to the asset requiring a CORS anonymous connection, since this domain has already been used to download the other assets on requests two to five, using the connection established in request number one.
Next, request 18.
Another TCP connection, and the color of the asset is in blue.
It lines up with the inline script execution within the HTML on request number one.
So there's a very good chance that this is where it was initialized from.
Also notice how busy the CPU, Bandwidth, and Main Thread graphs are.
This page is really working this device in all areas.
That's not necessarily a bad thing.
That's a lot of useful work happening, for example.
The observant among you may have noticed a set of lines in different colors vertically down the page.
These lines are specific events that happened during the page load.
In the example on the slide, we see Start render in green at 0.6 seconds.
Here the first pixels are painted to the screen.
DOM interactive at 1.75 seconds is in orange.
HTML has been parsed and the DOM has been constructed.
Document complete or the onload event is fired at 5.5 seconds.
There are other lines that aren't on this chart, but can be seen in the key above the waterfall.
So look out for those two.
And finally, the Request Details panel.
Each horizontal row is an asset request.
If you click anywhere on the row, a panel will pop up with a heap of information specifically about the selected request and the response back.
Basic details like the protocol and timings all the way through to request and response headers.
If you're looking for all these details in a large JSON blob, then the 'Raw Details' panel will give you this.
Using this panel for each request, you can really dig down into the details.
So now we've gone through the basic layout and what it all means, let's look at some more advanced examples and point out some of the features.
Using WebPageTest, it's easy to examine the difference between HTTP/1.1 and HTTP/2.
It's a good example to focus on as it's really easy to spot the differences.
Both tests are from testing GOV.UK on a desktop Chrome using a 3G connection.
First let's look at HTTP/1.1.
Notice the multiple TCP connections.
Notice how eager the connections on requests three and four.
This is the default browser behavior for HTTP/1.1, where it creates multiple connections early in anticipation for downloading multiple assets.
There's one DNS lookup shown in red, which is then reused for the other TCB connections shown in green.
And what's known as 'download chunks' can be seen heavily in requests 5-7 and 17-18.
So what are download chunks?
So this is where the two-colored shades I mentioned earlier start to come in.
The lighter color at the start is the time at which the browser sent the request to the server.
The dark chunks are data coming back from the server for this particular request.
You might be asking what the yellow weight bars signify?
So this is a point at which the HTML has been parsed, but the request for the asset has yet to be made.
You can see this in the waterfall by looking at where the blue HTML ends and the yellow wait bar starts.
In this case shown here, the wait time is probably because there are no free established TCB connections to make the actual request.
Also notice how the bandwidth chart has empty sections missing from it.
In this example, we have separate TCP connections fighting for limited bandwidth, but even with multiple TCP connections, the bandwidth isn't fully utilized.
This is what I meant before by the term 'useful work'.
By making sure the network connection is fully utilized during this important loading phase, it should in theory improve performance by maximizing the number of bytes received by the browser.
Now let's compare the exact same page, browser and connection under HTTP/2.
First thing to mention is how overall the waterfall looks a lot cleaner.
There's now only a single TCP connection on request number one, and this is used for all asset downloads.
There's not as much download chunking, as prioritization is happening over a single connection.
Under the hood, Chrome sets an exclusive flag for the stream dependencies on each resource.
So it downloads the assets in order from a long internal list.
Here's an interesting observation.
We seemingly have a single rogue DNS lookup on request 17, but it has no associated connection and SSL negotiation or the orange and pink colored bars.
This is actually HTTP/2 connection coalescing in action.
The assets domain and the root domain are different domains, but they are on the same infrastructure.
They both share the same IP address, and SSL certificate.
So the browser can use the existing TCP connection and SSL negotiation that was established on request number one, therefore all assets will download over the same single connection, even though they're on separate domains.
Note the bandwidth from 1.1 to 3 seconds is maxed out.
We don't have gaps over this time period like we did on the HTTP/ 1.1.
This is useful work being done by the connection.
If I quickly flick back and forth between the two, you really get to see the difference between the waterfalls.
Here we see that WebPageTest has exposed the internals of how the browser downloads a page under specific conditions.
If I were to run the same test under Firefox or Internet Explorer, this picture would look very different.
Briefly going back to the subject of download chunks again - there's a very simple way to see the data that powers these chunks visualization.
Clicking on the request you want to examine, you'll see a 'Raw Details' tab - this tab was mentioned before.
The tab gives you all the JSON related to this particular request.
Scrolling down this tab, you'll see a chunks array.
This array contains multiple objects.
Each object contains the timestamp of when the chunk completed (not started) and the number of bytes downloaded within this chunk.
WebPageTest works backwards from the completed time.
It then looks at the number of bytes downloaded and the available bandwidth at the time to calculate the chunk width to be displayed in the visualization.
Next up: Error/Status Codes.
WebPageTest will make it very obvious when it encounters the status code other than 200.
In this example, many requests have been omitted from the waterfall to make it easier to read.
These omitted requests can be identified by the three dots highlighted in green.
(Look for the customized waterfall link under the waterfall diagram to do this).
Back to our error and status codes.
Requests 1-10 are fine.
They're all '200' status codes.
Requests 99 and 101 are error codes (and the red background may have given this away!) In this case, they are '400' response codes, which refer to a bad request.
You can see the status code is seen in brackets after the request timing data.The timing value seen is the time taken to complete the request.
This includes a TCP connection negotiation if required, but excludes wait time.
Requests 123 to 130 are '302' status codes.
And these are seen with a yellow background.
The '302' code is the 'Found but temporarily moved' status code.
Notice how the browser still has to set up expensive TCP connections in a few instances, just to receive this '302' status code.
This is certainly something to watch out for when using third parties.
Next up - in a recent edition prompted I believe by Andy Davies - each request comes with a document value in the 'Details' panel that tells you where the request was initialized from.
Requests 2-5 are initialized from the root document as the text is in black.
Requests 11 and 28 are for a new HTML document - as notice that the asset is in blue.
Also note that the text is in blue to signify it has a new document value.
So this request was initialized from somewhere other than the root document.
This is most likely an iframe.
Notice further down - requests 47-49 also have blue text.
These are assets being downloaded by the iframe.
The blue request text doesn't only happen with iframes, it also happens with service workers and all the assets that they download.
And here's how it displays in the 'Details' panel when clicking on the requests.
Top image, we see the root document.
Bottom image is a third party iframe from Google with a different document value.
Looking at the 'Page is Interactive' (or the Long Tasks) bar below it gives an indication in this example, since it's solid red.
This functionality is only available in Safari and Chromium-based browsers.
Firefox doesn't expose this information.
Wouldn't it be great if you could add your own custom markers to the waterfall chart to see where certain events happened during the page load?
It's actually quite simple.
Just use the 'mark method' in the user timing API and add it to your page code.
These marks will be shown on the waterfall as vertical purple lines.
Note that these user timing marks don't show up in the default waterfall chart on the public instance of WebPageTest.
But if you have your own instance, they can be enabled by default.
The only way to see them using the public instance is to view the waterfall using the 'customize waterfall' link below the waterfall chart, which I mentioned earlier.
And this is a view you can see in this slide.
The reason for this is because many third parties leave these marks in their code, meaning there'll be a lot of noisy looking waterfall charts when using third parties.
And the last point on this, the actual timings of each of these events is shown just below the summary table for the test run.
So let's quickly look at some scenarios and see what we can learn.
Now, you may have seen this pattern in previous slides I've shown, I just haven't pointed it out to you.
When running a test using Chrome, the resulting waterfall will have a common pattern.
This pattern is called the 'stair step'.
The top step can be seen in red, the bottom step is seen in black.
So what's happening here?
This is essentially a separation between the assets in the head and the body.
It's a prioritization strategy that Chrome uses to improve performance.
Chrome will dedicate most CPU and bandwidth to getting the page head set up before then concentrating on the assets in the body.
This example (under HTTP/1.1) - notice the TCP connection on request 15.
This request is for an image that's located in the body, but it's been requested at the same time as an asset in the head.
So Chrome isn't completely ignoring the body, but resources in the head are the priority.
So I mentioned earlier about the CPU graph at the bottom of the waterfall chart.
So here's an example of what can happen to a waterfall chart when the device is CPU-limited.
It looks fairly standard until you look closely, then you'll notice the gaps between the requests.
These gaps on requests 24-26 show a large amount of inactivity that has a huge impact on performance.
If you examine the CPU graph directly below these gaps, it points to the reason why it's happening.
The graph is maxed out at 100% over this time period.
But we see the opposite for the network activity.
There's nothing really happening.
Examining the Browser Main Thread, there's some script parsing and execution in orange.
There's some page layout tasks in purple, but nowhere near enough activity to cause the CPU issue seen here.
So something odd is going on.
I'm afraid I don't have an explanation as to why the CPU is so maxed out.
Maybe it was just a low spec device that was having particular issues for this test?
But it shows how useful the other graphs can be when used in conjunction with the waterfall chart.
And finally, an unusual waterfall that cropped up on a government service recently.
I've actually written a whole blog post about this waterfall chart and what was happening.
We use SpeedCurve to monitor our services at GDS.
These tests run every day and look for web performance issues.
On this service, we saw the number of fonts being downloaded literally double overnight from three to six.
And nothing had changed - no releases, no code deployed - it just happened randomly.
Examining the graph, you can see the font size double.
In fact, the historic graph data shows this issue had randomly happened and fixed itself many times previously.
If we look at the waterfall, it gives us some insight into what's happening.
Looking at requests 12-14 for the WOFF2 fonts, you'll see this really strange set of gaps between the download chunks.
Now, it took a while to figure out what the issue was, but a long story short, we weren't serving the 'vary: origin' header with our fonts.
The CDN cache was being poisoned and serving up the fonts with the incorrect headers.
Another device was connecting, the headers for this device were being cached and served to our test browser on a completely separate device.
The browser was seeing these incorrect headers and immediately rejecting the fonts.
You can actually see all this happening in the waterfall.
So requests 12-14 are made for the WOFF2 fonts, very thin slices of data are received back from the server (and these are probably the headers), the browser immediately cancels the requests, and this can be seen in the waterfall by the light red color disappearing.
Almost immediately after this happens, the browser makes a request to the fallback or WOFF version of the fonts.
This then doubles up the number of font requests and increases the bytes being sent to the browser.
The dark red patches that now look to be floating are likely to be data that is already in one of various buffers between the server and the browser and is already in transit, so it couldn't be canceled.
This is just an example of how much information you can get from a waterfall chart once you understand some of the internals.
Without SpeedCurve and WebPageTest, this would have been almost impossible to identify and fix.
As we come to the end of the talk now, you may be interested in: "Where can I go if I want to find out more information?" Here's a list of links and various resources.
If you want to find out more about WebPageTest.
There's some shameless plugs in there from me, as well as some talks from Pat Meenan and Andy Davies.
I'll share these slides with you after the talk.
So let's talk has been based on a blog post I've written called: "How to read a WebPageTest waterfall chart." I did the research and pulled the information together for this post, but I've had lots of input from the folks from the web performance community, with corrections, additions, and general advice.
So a big thank you to all these lovely folks.
All their Twitters are listed, and they're well worth the follow if you don't already, I hope you found this talk useful.
Thank you for listening.
Image of the WebPageTest by Catchpoint logo
How to Read a WebPageTest waterfall chart
Image of a WebPageTest waterfall chart, which is a visualization of the raw data returned from various browser APIs. The chart features a color key header bar at the top, a list of page elements on the far left column, rows of color-coded bars with numeric markers plotted across a timeline on the main part of the page with some vertical colored lines overlaid on the chart, and a series of line graphs along the bottom with various performance indicators
Background faded image of the WebPageTest homepage
Image of the WebPageTest homepage with two red arrows overlaid titled: Start your journey here. One arrow points to a white search bar where the user enters the url of the page they wish to test, and the other points to a yellow button marked: Start Test
Background faded image of Matt's blog post on How to run a WebPageTest test
What is WebPageTest?
- Created by Pat Meenan in 2008 at AOL
- IE plugin called Pagetest
- Acquired by Catchpoint in 2020
Image of Pat Meenan
Image taken in 2014 of shelves crowded with boxes and electronics in Pat Meenan's basement with sardonic labels overlaid reading: Halloween Stuff and WebPageTest Rack
Image of the WebPageTest Select Test Location page with a map of the world dotted with location pins showing the range and number of places where WebPageTest allows you to run web performance tests from
Image of a basic WebPageTest waterfall chart taken from Matt's blog featuring a range of color-coded data sets returned from various browser API's
Image detail of the key from the prior waterfall chart. The key has 13 color-coded tabs representing (from left to right): wait, dns, connect, ssl, html, js, css, image, flash, font, video, other, and JS Execution. The browser connection section tabs are each assigned a solid colour, the mime-type tabs are assigned two colour tones, and the JS execution tab is assigned a solid colour. Each of these colours corresponds to an event or request you will see on the request timeline.
2: Request List
Image detail of the Request List from the waterfall chart which is a column list of all of the particular page's assets in the order the requests go out over the network. The group closest to the top appear in black type, some of the lower items on the list appear in blue type.
3: Request Timeline
Image of the data visually represented in a waterfall style format. Each asset is color-coded according to the prior key and has its own separate row. The time in seconds is seen along the top and bottom of the image. The pattern of the data across the page resembles the pattern of a waterfall, with items beginning at the top left and cascading down and across as they appear across the page
4: CPU Utilisation
Image detail of the CPU Utilization line graph which appears below the waterfall on the WebPageTest interface. The graph shows how much load the CPU of the test device was under at any point in time during the page load. It ranges from 0 to 100% utilisation.
5: Bandwidth In
Image detail of the Bandwidth In line graph which appears below the waterfall on the WebPageTest interface. The graph shows the bandwidth of the data flowing into the browser over the course of the page load.
6: Browser Main Thread
Image detail of the Browser Main Thread line graph which appears below the waterfall on the WebPageTest interface. The graph (here taken from the Guardian's website) shows the tasks that the browser's main thread is doing at any point in time. The x-axis of the graph comprises color-coded tasks corresponding to the following task types:
- Orange - Script parsing, evaluation and execution
- Purple - Layout
- Green - Painting
- Blue - HTML parsing
- Grey - Main thread time used for task processing not accounted for in other categories
The y-axis corresponds to the percentage of time that task is taking up.
7: Long Tasks
Image detail of the Long Tasks (formerly "Page is Interactive") bar chart which appears below the waterfall on the WebPageTest interface. The chart shows the length of tasks. Various parts of the bar are color-coded to correspond with various lengths. The first section of the bar is white, and the rest is green with a few short red sections. If the main thread is blocked for 50ms or more, the colour is red. If not then it is green.
Full view image of the WebPageTest waterfall chart UI showing test results from the Guardian homepage (a popular UK news website)
Repeat image of the same waterfall chart with a red arrow overlaid highlighting the 'dns', 'connect', and 'ssl' times at the beginning of the Request Timeline demonstrating when the server connection is established
Repeat image of the waterfall chart UI with a red arrow overlaid highlighting the html section on the Request Timeline, indicating when the HTML is downloaded and parsed.
Repeat image of the waterfall chart UI with a red box outline overlaid encompassing the additional page resources that have been found and queued up for later request in the Request Timeline waterfall
Repeat image of the waterfall chart UI with a bidirectional red arrow overlaid highlighting a pale yellow bar (corresponding with waiting for a connection in the color key) in the line 14 asset request. The other end of the arrow points back to the initial connection, highlighting the fact that an additional TCP connection has been established
Repeat image of the waterfall chart UI with two red arrows overlaid highlighting a third TCP connection (indicated by green, orange, and pink colored bars corresponding with dns, connect, and ssl assets) on request 18 followed by an HTML request (indicated by a blue colored bar corresponding with an HTML asset). indicating a request for another html page.
Repeat image of the waterfall chart UI with a red arrow overlaid showing how the the third TCP connection on request 18 lines up with the blue and pink asset color on the simultaneous HTML/JS execution assets on request 1. The blue/pink hybrid bar represents an inline JS script in the page source, which likely triggered the line 18 HTML request that established the third TCP connection
Repeat image of the waterfall chart UI with a red outline overlaid encompassing the CPU, Bandwidth, Browser Main Thread graphs, all of which are very busy.
Zoomed out image of the waterfall chart UI with a color-coded key at the top correlating with a series of six vertical lines on the page. These lines represent specific events that happen during page load and are color-coded according to the following key (from left to right):
- Start Render (colored in green)
- RUM First Paint (colored in grey)
- DOM Interactive (colored in orange)
- DOM Content Loaded (colored in pink)
- On Load (colored in pale blue)
- Document Complete (colored in electric blue)
Repeat image of the waterfall chart UI with a red arrow overlaid showing Start render (in green) at 0.6 seconds, indicating the first pixels being painted to the screen
Repeat image of the waterfall chart UI with a red arrow overlaid showing DOM Interactive (in orange) at 1.75 seconds, indicating that HTML has been parsed and the DOM constructed
Repeat image of the waterfall chart UI with a red arrow overlaid showing Document Complete (onload fired) at 5.5 seconds (in electric blue), indicating static image content is loaded (but changes triggered by JS execution may not be included)
Image of the Waterfall View page UI with one asset highlighted and a popup window detail with a series of dropdown menus. The Details menu is selected and returns information about the selected request and the response back (for e.g. URL, Document,Host, IP, Priority, Request Start, Time to First Byte, CPU Time, etc).
Image of the same Waterfall View page UI with the same row detail popup panel as the prior slide, here with a red arrow overlaid pointing to the Raw Details menu option
Beyond the basics
HTTP/1.1 vs HTTP/2
Image of a sample WebPageTest waterfall chart taken from testing GOV.UK, generated under HTTP/1.1 on Desktop Chrome using a 3G connection.
Repeat image of the waterfall chart with a large number of red arrows overlaid correlating with multiple TCP connections across the waterfall
Repeat image of the waterfall chart with two red arrows overlaid highlighting connect and ssl times on request 3 & 4, indicating default browser behavior for HTTP/1.1, which creates multiple connections early in anticipation for downloading multiple assets.
Repeat image of the waterfall chart with two red arrows overlaid highlighting two DNS lookups - one at the very beginning of the Request Timeline, and the other around the 3.2 second mark. A number of green arrows are also overlaid, indicating where these two DNS lookups are then reused for several other TCP connections in the waterfall
Repeat image of the waterfall chart with black outline boxes overlaid indicating areas of “download chunks,” which can be seen heavily in requests 5-7 and 17-18. Download chunks are represented by two-toned color shading on their associated bands.
Repeat image of the waterfall chart with a light blue arrow overlaid highlighting the lighter section of a two-toned download chunk at request 17-18, indicating the time the browser sent the request to the server
Repeat image of the waterfall chart with a light blue arrow overlaid highlighting the darker sections of a two-toned download chunk at request 17-18, representing the data coming back from the server for this particular request
Repeat image of the waterfall chart with red arrows overlaid highlighting the significance of a number of yellow wait time bars (which are encompassed within a red box connected to one of the arrows.) The yellow bars indicate the point at which the HTML has been parsed, but the request for the asset has yet to be made. The yellow bars appear on the timeline where blue HTML bars end. In the case highlighted in the red box on the slide, the wait is because there are no free established TCP connections (indicated by orange 'connect' bars on the timeline) to make the request.
Repeat image of the waterfall chart with red arrows overlaid highlighting empty “sections” on the Bandwidth graph as separate TCP connections fight for limited bandwidth
Repeat image of the same GOV.UK waterfall chart tested with the same page, browser, and connection under HTTP/2. This version looks a lot cleaner and more orderly than the prior version. A red arrow and box overlaid highlighting a TCP connection on request number 1. It is the only TCP connection in the chart, indicating that it was used for all the asset downloads. This also leads to less download chunking, making the waterfall cleaner.
Repeat image of the waterfall chart with a red arrow overlaid highlighting an apparent rogue DNS lookup on request 17, but it has no associated connection and SSL negotiation (orange and pink coloured bars). This is indicative of HTTP/2 connection coalescing in action as the `assets` domain and the root domain are different domains but they are on the same infrastructure, therefore all assets will download over the same single connection
Repeat image of the waterfall chart with a red arrow and highlight box overlaid on a section of the bandwidth graph that spikes from 1.1 to 3 seconds (unlike the gaps seen in the HTTP/1.1 version).
Repeat image of the HTTP/2 waterfall chart test featuring clean lines
Repeat image of the HTTP/1.1 waterfall chart test featuring a much more busy and messy waterfall
Image detail of one asset from the Request List highlighted and a popup window overlaid. Information is being shown from the Raw Details menu tab. The highlighted information showing in this example is under the ‘chunks’ array. This array contains multiple objects and each object contains timestamps of when the chunk completed (not started), and the number of bytes downloaded in this chunk.
Image of a WebPageTest waterfall chart with green arrows overlaid pointing to rows representing omitted requests (identified by three dots where the asset URL has been omitted. These rows have been omitted for clarity for the purposes of the upcoming demonstration Matt is giving on Error/Status Codes
Zoomed image detail of the WebPageTest waterfall chart for the upcoming example with a red arrow overlaid pointing to the customize waterfall link that users can select to make similar omissions in their own test page data charts
Image of the waterfall chart with a green box overlaid across rows 1-10 of the Request List assets. Below these, two other rows are shaded in red and a range of others are shaded in yellow
Image of the waterfall chart with a green box overlaid across rows 99 and 101 of the Request List and their corresponding rows. These rows are shaded in red, indicating error codes
Image of the waterfall chart with green arrows overlaid highlighting where the status code can be seen in brackets after the request timing data. In this case they are from `400` response codes, which refers to a bad request.
Image of the waterfall chart with green arrows overlaid highlighting where the timing value appears in the error code, indicating the time taken to complete the request.
Image of the waterfall chart with a green box overlaid highlighting requests 123 to 130, which are `302` status codes ('Found but temporarily moved') and are shaded with a yellow background.
Image of the waterfall chart with green arrows overlaid highlighting a number of TCP connections that are set up before receiving the 302 status code
Identifying the request initialiser
Image of WebPageTest waterfall chart with a red box overlaid to encompass Lines 1-5 of the Request List along with their Request Timeline information, including a “Document” value that indicates where the request was initialised from. Root document initializations (as seen in requests 2-5 in the highlighted section of assets) appear in black type
Image of the waterfall chart with red arrows overlaid highlighting the location of timeline documentation for requests 11 and 28. The documentation is colored blue, indicating they are requests for new HTML documents. The corresponding assets in the Request List are also colored in blue type to indicate they have a new document value, meaning the request was initialised from somewhere other than the root document (for example an iframe)
Image of the waterfall chart with a red box overlaid to encompass requests 47-49, which are also colored in blue. These are likely assets being downloaded by the iframe.
Two images of the details popup panel that appears when a user clicks on a particular request. Red arrows are overlaid on each image showing where initializations are displayed. The top image is the root document. In the bottom image, a third-party iframe from Google with a different document value is initializing the request
User Timing Marks
<script>window.performance.mark( 'mark_custom_event' );</script>
Image demonstrating where and how a user can customize the settings in the WebPageTest API to create custom markers to the waterfall chart to see where certain events happened during page load. The image is taken from the public instance of WebPageTest using the "customize waterfall" link. A red arrow overlaid on the chart shows where the user has checked a box labelled "Draw lines for user timing marks". On the waterfall underneath, the marks appear as vertical purple lines. Purple arrows are overlaid on the slide to show where these marks are located
Image detail of the Details - Summary view of WebPageTest's test run summary page with a red arrow overlaid pointing to the row where the user can find the actual timings of each of the custom events that they set in the customization settings
Image of a waterfall chart with two boxes overlaid highlighting two sections that show a pattern on the page called a stair step, which appears as two data sets that visually resemble descending steps on a staircase, with the first group of page load events (within the red box) appearing higher and to the left of the waterfall (the 'top' step); and the second group (within the black box) appearing lower and to the right of the waterfall (the 'bottom' step). This pattern is common when running a test using Chrome and represents the separation of assets in the head and the body being assigned differing priority by Chrome to improve performance
Image of a waterfall chart generated under HTTP/1.1 with a red arrow overlaid highlighting the TCP connection at request 15 for an image that is located in the body, but which is being requested at the same time as the head assets. Chrome is recognizing the request but prioritizing resources in the head.
Image of a waterfall chart with two red arrows overlaid highlighting two gaps (indicating inactivity) between requests on requests 24-26
Repeat image of the same waterfall chart as prior slide with four red arrows overlaid highlighting the prior gaps on requests 24-26 as well as two more on later requests. A red box is overlaid on the corresponding time period in the CPU graph. The line representing CPU utilization is largely flush with the top boundary of the graph, indicating that the CPU is operating at the maximum capacity of the device
Repeat image of the same waterfall chart as prior slide with a red highlight box overlaid on the Bandwidth In graph corresponding to the same time period as the gaps in the request timeline. The lines representing Bandwidth are largely flush with the bottom boundary of the graph, indicating that Bandwidth is not being utilized at this time
Repeat image of the same waterfall chart as prior slide with a red highlight box overlaid on the Browser Main Thread graph corresponding to the same time period as the gaps in the request timeline. The graph shows some script parsing & execution (in orange), some page layout tasks (in purple). But nowhere near enough activity to cause the CPU issue. The comparison of the graphs does not explain why the CPU is so maxed out (although it points to a device issue) but the comparison does show how data from the graphs can be when used in conjunction with the waterfall chart.
Vary unusual waterfall
Image of a graph related to font size fluctuations over time shown in a SpeedCurve (performance software built on top of WebPageTest) user interface. The graph is made of yellow lines on a black backdrop which shows rapid rising and falling over a period of time (in this case indicating an increase in font requests without apparent cause and then resetting automatically, with this pattern repeating over time.)
Image of the corresponding WebPageTest waterfall chart for the same page discussed in prior slide. A black arrow and highlight box are overlaid on requests 12-14 (for the WOFF2 fonts). The requests appear on the timeline with sets of gaps between the download chunks
Image of the same waterfall chart as prior slides with three black arrows overlaid highlighting where the issue arose. Matt's team weren’t serving the `vary: origin` header with their fonts, therefore fonts were served with incorrect headers. Another device was connecting, the headers for this device were being cached and then served to the test browser on another device. The browser was seeing these incorrect headers and immediately rejecting the fonts. In this slide the arrows show where request 12-14 are made for the WOFF2 fonts. These events can be identified on the timeline by their salmon/light red colour, corresponding to the time the requests were sent in the two-tone 'font' band in the color key).
Image of the same waterfall chart as prior slides with three black arrows overlaid highlighting where thin slices of data were received back from the server (probably the headers). These are identified on the timeline by their dark red color which corresponds with the second part of the two-toned 'font' color band in the key, representing data coming back from the server for these requests.
Image of the same waterfall chart as prior slides with three black arrows overlaid highlighting where the browser immediately cancels the request, this is seen in the waterfall by the light red colour disappearing.
Image of the same waterfall chart as prior slides with three black arrows overlaid highlighting where the browser makes a request to the ‘fallback’ WOFF versions of the fonts. This can be seen in the waterfall by a doubling of the font requests further down the waterfall.
Image of the same waterfall chart as prior slides with three black arrows overlaid highlighting where there are dark red patches that now look to be floating, which are likely to be data that was already in one of the various buffers between the server and the browser and already in transit, so couldn’t be cancelled. This and the prior slide data show how much information waterfall charts can offer to identify and fix performance issues
List of resource links to find more about WebPageTest
- Using WebPageTest - Rick Viscomi, Andy Davies, Marcel Duran
- Velocity 2014 - WebPagetest Power Users - Part 1 - Pat Meenan
- Velocity 2014 - WebPagetest Power Users - Part 2 - Pat Meenan
- Velocity 2014 - WebPagetest Private Instances - Part 1 - Pat Meenan
- Velocity 2014 - WebPagetest Private Instances - Part 2 - Pat Meenan
- Using WebPageTest – Scripting / API / Private Instances - Andy Davies
- How to read a WebPageTest Waterfall View chart - Matt Hobbs
- How to read a WebPageTest Connection View chart - Matt Hobbs
- How to run a WebPageTest test - Matt Hobbs
- How to use WebPageTest's Graph Page Data view - Matt Hobbs
- Pat Meenan (@patmeenan)
- Andy Davies (@AndyDavies)
- Barry Pollard (@tunetheweb)
- Ryan Townsend @RyanTownsend)
- Simon Hearne (@simonhearne)
- Boris Schapira (@boostmarks)
- Joseph Scott (@josephscott)
- Mike Herchel (@mikeherchel)
- Šime Vidas (@simevidas)
- Rick Viscomi (@rick_viscomi)
- Radu Micu (@radumicu)
- Jeff Posnick (@jeffposnick)
- George Liu (@centminmod)
Thanks for listening!
